SL-314・3/L

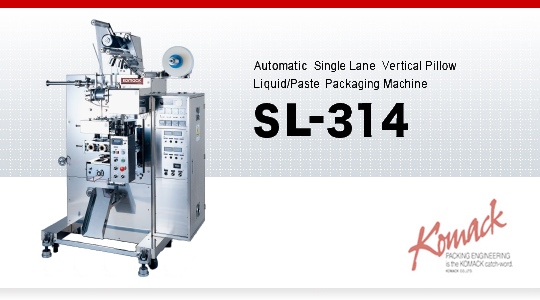

AUTOMATIC SINGLE LANE LIQUID & PASTE VERTICAL PILLOW PACKAGING MACHINE
SL-314・3/L is automatic single lane vertical pillow packaging machine for liquid and paste.
This machine is stick type packaging machine by heating roll and continuous driving method.
This machine is single lane method but can increase the number of rotation for the continuous driving compared to any other stick packaging machine and enjoy a good reputation as an economy type packaging machine.
In addition, this machine is adopted the rotary pump. By installing the photocell control device for print registration, the photocell control of printing pitch design is possible.
Standard Specifications
| Filling material | liquid and paste | |
| Pouch pattern | vertical pillow | |
| Packaging capacity | 20-80 pouches/min (Max. machine capacity) | |
| * Actual packaging speed depends on the product pitch, film quality and filling materials. | ||
| Filling volume | 10-50cc | |
| * Weighing range of filling volume depends on the filling material and feeder. | ||
| Pitch variable range | 45-160mm | |
| Product width variable range | 25-50mm | |
| Power source | 3-phase 380V, 1.6KW | |
| Machine dimension | 1,200mm (W) × 1,150mm (L) × 1,800mm (H) | |
| Machine weight | Approx. 600kg | |
(Note)
1. The packaging capacity, filling volume and the package size may vary by the selected options. Please contact us for details.
2. The actual filling speed may vary by the film material and the property of the filling material.
3. The range of the filling volume is determined by the “viscosity of the filling material” and the “feeding pump”. Please feel free to consult with us.
4. The total power may vary by the specifications of the pump and other optional equipments.
