Having trouble with pinhole or seal leakage when filling
powder in sachets?


Komack leak tester is an inspection equipment for 3 side, 4 side or pillow type sealed pouch that can see where leakage is, and whether there is leakage or not, caused by sealing failure or pinhole and so on, in the testing underwater.

It doesn't use vacuum pump to decompression. Instead of that, It use vacuum ejector(*1). So, you can use it without electric power supply.

The size is compact in size. So, you can use simply.

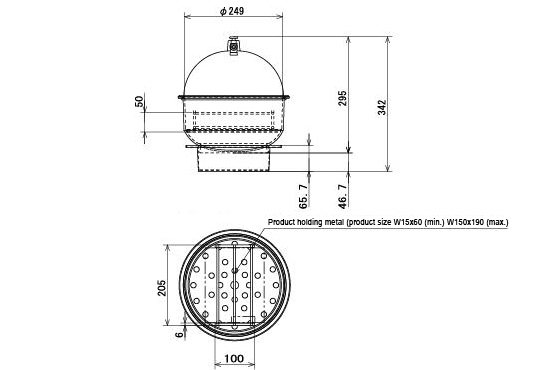

We have 2 types of desiccator that is used for putting pouch for test, round(sphere) type and rectangle(box) type. So, please select one of them according to the use.

*1 Vacuum ejector is an appliance that can make a vacuum from compressed air.



Having trouble with pinhole or seal leakage when filling powder in sachets?
We have a solution!!
The leak tester is now upgraded to suit sanitary packaging quality!!
We are now proudly offering this easy-to-use in the packaging site and movable-as-needed “Leak Tester” for you!

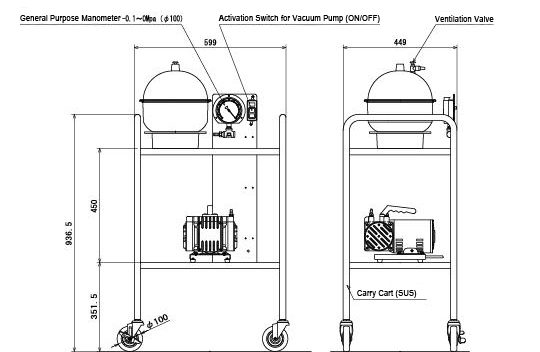

[Vacuum Pump]
Model G-50DA
Blade Type Type 2
Power (V) 100
Exhaust Velocity (L/min) 50(50Hz), 60(60Hz)
Electric Motor (w) 200 (4P)
Ultimate Pressure (MPa) -0.08
